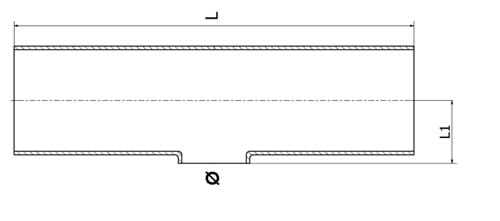

T-stykke, kort, reduceret gren, DIN

Indvendig bejdset og udvendig slebet.
Leveres med glatte ender.

Fremstillet i rustfrit stål AISI 316L / EN 1.4404.

Standard DIN 11852.

Varenummer Nominel dim. - DN Nominel dim.
mm.
Længde L
mm.
Indbygningsmål L
mm.
Gren dim. Ø
mm.
Godstykkelse
mm.
Nettovægt
kg.
Basisenhed Antal
0101072250 25 / 20 29,0 X 23,0 100,0 17,0 23,0 1,50 0,090 STK
0101072320 32 / 25 35,0 x 29,0 110,0 19,0 29,0 1,50 0,120 STK
0101072400 40 / 25 41,0 X 29,0 120,0 22,5 29,0 1,50 0,150 STK
0101072401 40 / 32 41,0 X 35,0 120,0 22,5 35,0 1,50 0,150 STK
0101072500 50 / 25 53,0 x 29,0 140,0 29,5 29,0 1,50 0,240 STK
0101072501 50 / 40 53,0 X 41,0 140,0 29,5 41,0 1,50 0,240 STK
0101072650 65 / 25 70,0 x 29,0 160,0 39,0 29,0 2,00 0,470 STK
0101072651 65 / 40 70,0 x 41,0 160,0 39,0 41,0 2,00 0,460 STK
0101072652 65 / 50 70,0 X 53,0 160,0 39,0 53,0 2,00 0,460 STK
0101072800 80 / 25 85,0 x 29,0 180,0 46,5 29,0 2,00 0,700 STK
0101072801 80 / 40 85,0 x 41,0 180,0 46,5 41,0 2,00 0,700 STK
0101072802 80 / 50 85,0 X 53,0 180,0 46,5 53,0 2,00 0,680 STK
0101072803 80 / 65 85,0 X 70,0 180,0 46,5 70,0 2,00 0,680 STK
0101072990 100 / 25 104,0 X 29,0 200,0 56,0 29,0 2,00 1,000 STK
0101072991 100 / 40 104,0 X 41,0 200,0 56,0 41,0 2,00 1,000 STK
0101072992 100 / 50 104,0 X 53,0 200,0 56,0 53,0 2,00 1,000 STK
0101072993 100 / 65 104,0 X 70,0 200,0 56,0 70,0 2,00 1,000 STK
0101072994 100 / 80 104,0 X 85,0 200,0 56,0 85,0 2,00 1,000 STK
Forbehold for forkert produktdata, variationer i billeder/videoer, samt pris- og valutakursændringer.
