Union reduktion

Anvendelse:

Anvendes til komprimeret luft, vand, olie og kemiske produkter.

Konstruktion:

Fremstillet i rustfrit stål AISI 316.

Tryk:

Arbejdstryk ved 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperatur:

Temperatur dækker fra -60°C til +400°C.

Download datablad

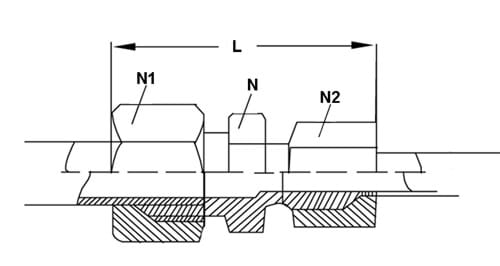

Varenummer	Nøglevidde mm.	Nøglevidde omløber mm.	Længde L mm.	Rør dim. 1 - mm.	Nøglevidde omløber 2 mm.	Arbejdstryk bar	Nettovægt kg.	Basisenhed
0100670806	14,0	17,0	41,0	8,0 / 6,0	14,0	315,0	-	STK
0100671006	017,0	19,0	42,0	10,0 / 6,0	14,0	315,0	-	STK
0100671008	17,0	19,0	42,0	10,0 / 8,0	19,0	315,0	-	STK
0100671206	12,0	-	-	12,0 / 6,0	-	315,0	-	STK
0100671208	19,0	22,0	43,0	12,0 / 8,0	17,0	315,0	-	STK
0100671210	19,0	22,0	44,0	12,0 /10,0	19,0	315,0	-	STK
0100671506	-	-	-	15,0 / 6,0	-	315,0	-	STK
0100671508	-	-	-	15,0 / 8,0	-	315,0	-	STK
0100671510	24,0	27,0	45,0	15,0 / 10,0	019,0	315,0	-	STK
0100671512	24,0	27,0	45,0	15,0 / 12,0	22,0	315,0	-	STK
0100671808	-	-	-	18,0 / 8,0	-	315,0	-	STK
0100671810	-	-	-	18,0 / 10,0	-	315,0	-	STK
0100671812	27,0	32,0	47,0	18,0 / 12,0	22,0	315,0	-	STK
0100671815	27,0	32,0	48,0	18,0 / 15,0	27,0	315,0	-	STK
0100672212	-	-	-	22,0 / 12,0	-	160,0	-	STK
0100672215	32,0	36,0	50,0	22,0 / 15,0	27,0	160,0	-	STK
0100672218	32,0	36,0	051,0	22,0 / 18,0	032,0	160,0	-	STK
0100672822	41,0	41,0	54,0	28,0 / 22,0	036,0	160,0	-	STK
0100673528	46,0	50,0	59,0	35,0 /28,0	41,0	160,0	-	STK
0100674228	-	-	-	42,0 / 28,0	-	160,0	-	STK
0100674235	55,0	60,0	66,0	42,0 / 35,0	50,0	160,0	-	STK

Forbehold for forkert produktdata, variationer i billeder/videoer, samt pris- og valutakursændringer.
