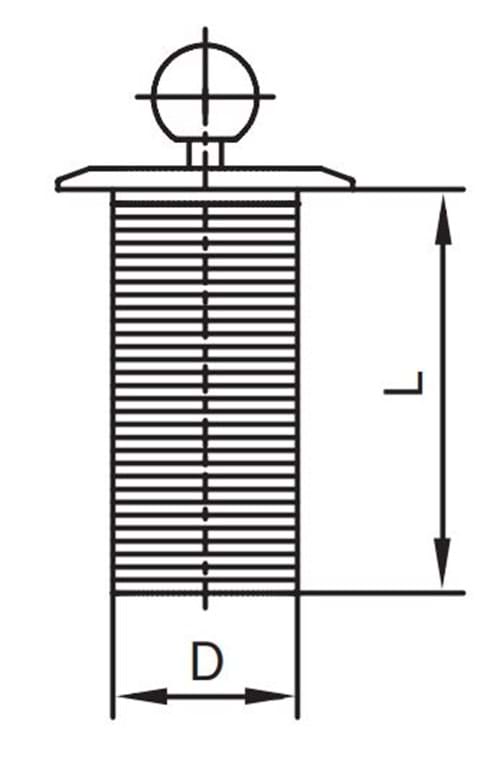

Filterindsats for smudsfilter, Y-type, rustfri AISI 316

Anvendelse:

Filterindsats for smudsfilter, Y-type.

Kvalitet:

Fremstillet i rustfrit stål AISI 316.

KV-værdi: Den mængde vand i m3/h, ved +15°C der strømmer igennem ved et trykfald på 1 bar.

Download datablad

Varenummer	Nominel dim. mm.	D Dia. mm.	Længde L mm.	Spaltestørrelse mm.	Frit areal cm2	Nettovægt kg.	Basisenhed	Flow ved 1 bar tryktab m3/h	D dia. mm.
0121025025	25,0	38,0	100,0	0,25	21,0	0,870	STK	13,6
0121025050	25,0	38,0	100,0	0,50	37,0	0,870	STK	15,1
0121025100	25,0	38,0	100,0	1,00	91,0	0,870	STK	16,7
0121040025	40 & 50	57,0	125,0	0,25	40,0	1,240	STK	24,8 / 36,5
0121040050	40 & 50	57,0	125,0	0,50	71,0	1,240	STK	28,6 / 43,0
0121040100	40 & 50	57,0	125,0	1,00	172,0	1,240	STK	33,5 / 51,5
0121065025	65,0	73,0	145,0	0,25	61,0	1,560	STK	56,2
0121065050	65,0	73,0	145,0	0,50	106,0	1,560	STK	69,2
0121065100	65,0	73,0	145,0	1,00	257,0	1,560	STK	86,7
0121080025	80,0	85,0	160,0	0,25	79,0	1,860	STK	83,6
0121080050	80,0	85,0	160,0	0,50	137,0	1,860	STK	103,1
0121080100	80,0	85,0	160,0	1,00	331,0	1,860	STK	127,6
0121100025	100,0	110,0	185,0	0,25	119,0	2,340	STK	127,9
0121100050	100,0	110,0	185,0	0,50	205,0	2,340	STK	155,2
0121100100	100,0	110,0	185,0	1,00	498,0	2,340	STK	192,3
