DS valsereduktion krave.png

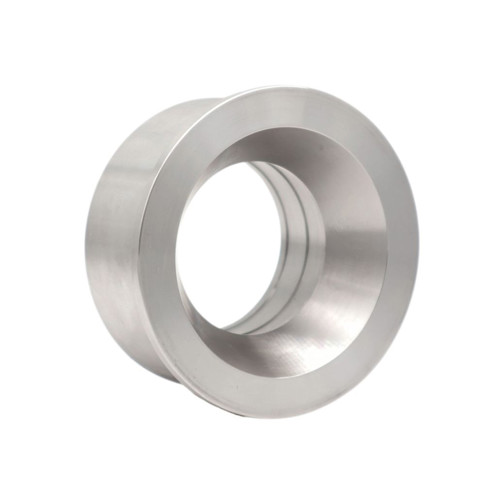

DS-valsereduktion krave, ISO 2037, rustfri AISI 316

Fremstillet i rustfrit stål AISI 316.

Udformet med riller til fastvalsning af mejerirør.

Download datablad

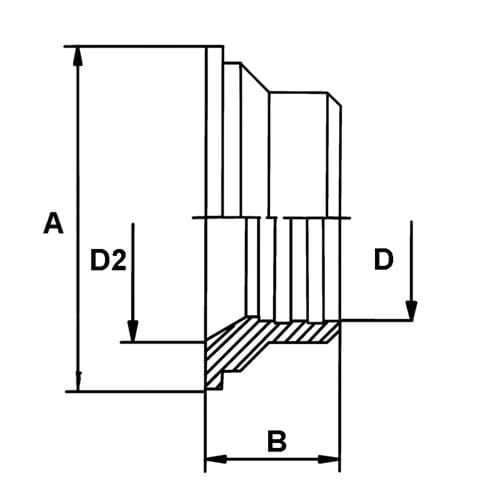

Varenummer	Nominel dim. mm.	D2 dia. mm.	Længde B mm.	A dia. mm.	D dia. mm.	Nettovægt kg.	Basisenhed
0101180380	38,0	38,0	30,0	54,0	25,0	0,0	STK
0101180510	51,0	51,0	32,0	68,0	25,0	0,0	STK
0101180511	51,0	51,0	38,0	68,0	38,0	0,0	STK
0101180640	63,5	63,5	38,0	84,0	38,0	0,0	STK
0101180641	63,5	63,5	42,0	84,0	51,0	0,0	STK
0101180761	76,0	76,0	44,0	96,0	51,0	0,0	STK
0101180762	76,0	76,0	44,0	96,0	63,5	0,0	STK
