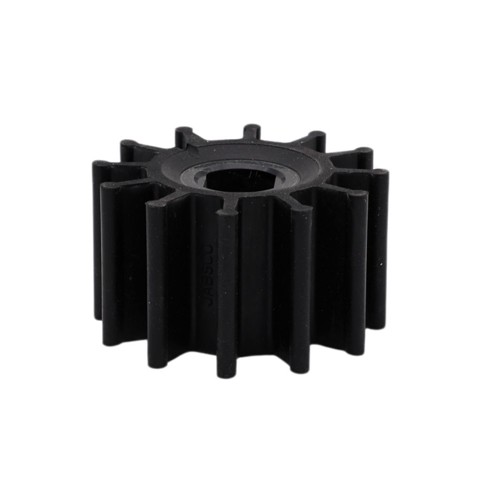

JABSCO impeller

Anvendelse:

Impeller skabt til industriel brug for virksomheder i procesindustrien. Anvendes til impellerpumpe og er velegnet til virksomheder, der kræver nøjagtig kontrol og effektiv væskeoverførsel.
IKKE TIL MARINEBRUG

Kvalitet:

Fremstillet i diverse gummimaterialer.
Se tabellen.

Download datablad

Tekniske specifikationer

Standard:

Overholder OEM standarder.

Temperatur:

Neopren dækker fra +4°C til +82°C
Nitril dækker fra +10°C til +90°C
Viton dækker fra +4°C til +90°C
EPDM dækker fra +4°C til +90°C

Varenummer	Komponent	D Dia. mm.	Bredde mm.	Type	Akseltype	Lamel antal stk.	Gummi kvalitet	Basisenhed
1400006731	673-0001B	51,0	22,0	1	Pindrive	6,0	Neoprene	STK
1400008361	836-0001B	95,0	63,0	6	Spline	9	Neoprene	STK
1400008363	836-0003	95,0	63,0	6	Spline	9,0	NBR	STK
1400009641	964-0001	65,0	50,2	6	Spline	8,0	Neoprene	STK
1400012101	1210-0001	57,0	31,5	6	Spline	12,0	Neoprene	STK
1400014141	1414-001	32,0	12,0	3	Single flat	6,0	Neoprene	STK
1400045981	4598-0001	65,0	50,2	2	Key drive	8,0	Neoprene	STK
1400063030	6303-0003	51,0	22,0	3	Single flat	6,0	NBR	STK
1400072733	7273-0003	51,0	22,0	3	Single flat	6,0	NBR	STK
1400076142	7614-0002	57,0	31,5	4	Double flat	12,0	EPDM - FDA	STK
1400076145	7614-0005	57,0	31,5	4	Double flat	12,0	Neoprene - FDA	STK
Varenummer	Komponent	D Dia. mm.	Bredde mm.	Type	Akseltype	Lamel antal stk.	Gummi kvalitet	Basisenhed
1400086002	8600-0002	117	88,4	4	Double flat	12,0	EPDM - FDA	STK
1400086005	8600-0005	117	88,4	4	Double flat	12,0	Neoprene - FDA	STK
1400088402	8840-0002	65,0	50,2	4	Double flat	8,0	EPDM - FDA	STK
1400088405	8840-0005	65,0	50,2	4	Double flat	8,0	Neoprene - FDA	STK
1400088406	8840-0006	65,0	50,2	4	Double flat	8,0	NBR - FDA	STK
1400089632	8963-0002	117	88,4	4	Double flat	9,0	EPDM - FDA	STK
1400089635	8963-0005	117	88,4	4	Double flat	9,0	Neoprene - FDA	STK
1400089636	8963-0006	117	88,4	4	Double flat	9,0	NBR - FDA	STK
14000898023	8980-0023B	57,0	31,5	4	Double flat	10,0	NBR - FDA	STK
1400089805	8980-0005	57,0	31,5	4	Double flat	10,0	Neoprene - FDA	STK
Varenummer	Komponent	D Dia. mm.	Bredde mm.	Type	Akseltype	Lamel antal stk.	Gummi kvalitet	Basisenhed
1400089812	8981-0002B	65,0	50,2	4	Double flat	8	EPDM	STK
1400089815	8981-0005	65,0	50,2	4	Double flat	8,0	Neoprene - FDA	STK
1400089832	8983-0002	95,0	63,0		Double flat	10,0	EPDM - FDA	STK
1400089835	8983-0005	95,0	63,0	4	Double flat	10,0	Neoprene - FDA	STK
1400089836	8983-0006	95,0	63,0	4	Double flat	10,0	NBR - FDA	STK
1400089845	8984-0005	117	88,4	4	Double flat	9,0	Neoprene - FDA	STK
1400092005	9200-0005	40,0	19,0	3	Single flat	10,0	Neoprene - FDA	STK
1400092011	9200-00011	40,0	19,0	3	Single flat	10,0	Neoprene	STK
1400092023	9200-0023B	40,0	19,0	3	Single flat	10,0	NBR	STK
1400142811	14281-0001	57,0	31,5	4	Double flat	12,0	Neoprene	STK
Varenummer	Komponent	D Dia. mm.	Bredde mm.	Type	Akseltype	Lamel antal stk.	Gummi kvalitet	Basisenhed
1400142813	14281-0003	57,0	31,5	4	Double flat	12,0	NBR	STK
1400142814	14281-0004	57,0	31,5	4	Double flat	12,0	Viton	STK
1400142821	14282-0001	65,0	50,2	4	Double flat	8,0	Neoprene	STK
1400142823	14282-0003	65,0	50,2	4	Double flat	8,0	NBR	STK
1400142824	14282-0004	65,0	50,2	4	Double flat	8,0	Viton	STK
1400143462	14346-0002	95,0	63,0	4	Double flat	12,0	EPDM - FDA	STK
1400143463	14346-0003	95,0	63,0	4	Double flat	12,0	NBR	STK
1400143465	14346-0005	95,0	63,0	4	Double flat	12,0	Neoprene - FDA	STK
1400179361	17936-0001B	95,0	89,0	6	Spline drive	12	Neoprene	STK
1400179371	17937-0001B	65,0	50,3	6	Spline	10,0	Neoprene	STK
Varenummer	Komponent	D Dia. mm.	Bredde mm.	Type	Akseltype	Lamel antal stk.	Gummi kvalitet	Basisenhed
1400179373	17937-0003B	65,0	50,3	6	Spline	10,0	NBR	STK
1400186531	18653-001B	50,8	22,0	1	Pindrive	6	Neoprene	STK
1400218995	21899-0005	127,0	101,5	4	Double flat	13,0	Neoprene - FDA	STK
