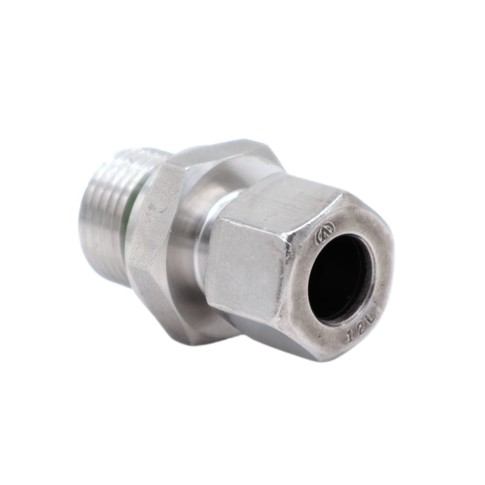

Overgangsstykke med udv. gevind

Anvendelse:

Anvendes til komprimeret luft, vand, olie og kemiske produkter.

Konstruktion:

Fremstillet i rustfrit stål AISI 316.

Tryk:

Arbejdstryk ved 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperatur:

Temperatur dækker fra -60°C til +400°C .

Download datablad

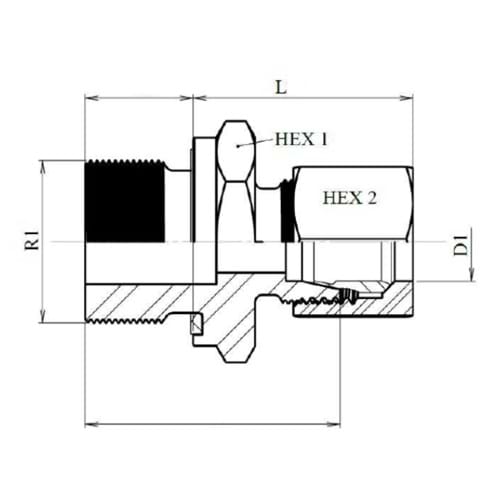

Varenummer	Nøglevidde - HEX1 mm.	Nøglevidde omløber - HEX2 mm.	Nominel dim. tomme	Rør dim. 1 - mm.	Længde L mm.	Arbejdstryk bar	Nøglevidde mm.	Nøglevidde omløber mm.	Nettovægt kg.	Basisenhed
0100659020	14,0	14,0	1/8"	6,0	23,5	315,0	14,0	14,0	0,020	STK
0100659021	14,0	17,0	1/8"	8,0	24,5	315,0	14,0	17,0	0,030	STK
0100659022	17,0	19,30	1/8"	10,0	25,5	315,0	17,0	19,0	0,040	STK
0100659040	19,0	14,0	1/4"	6,0	29,0	315,0	19,0	14,0	0,030	STK
0100659041A	19,0	17,0	1/4"	8,0	29,0	315,0	19,0	17,0	0	STK
0100659042	19,0	19,0	1/4"	10,0	30,0	315,0	19,0	19,0	0,050	STK
0100659043	19,0	22,0	1/4"	12,0	31,0	315,0	19,0	22,0	0,086	STK
0100659080	22,0	14,0	3/8"	6,0	30,5	315,0	22,0	14,0	0,048	STK
0100659081	22,0	17,0	3/8"	8,0	30,5	315,0	22,0	17,0	0,052	STK
0100659082	22,0	19,0	3/8"	10,0	31,5	315,0	22,0	19,0	0,070	STK
0100659083	22,0	22,0	3/8"	12,0	31,5	315,0	22,0	22,0	0,088	STK
0100659084	24,0	27,0	3/8"	15,0	32,5	315,0	24,0	27,0	0,096	STK
0100659085	-	-	3/8"	22,0	35,5	160,0	32,0	36,0	0	STK
0100659100	27,0	17,0	1/2"	8,0	33,0	315,0	27,0	17,0	0,090	STK
0100659101	27,0	19,0	1/2"	10,0	34,0	315,0	27,0	19,0	0,090	STK
0100659102	27,0	22,0	1/2"	12,0	34,0	315,0	27,0	22,0	0,100	STK
0100659103	27,0	27,0	1/2"	15,0	35,0	315,0	27,0	27,0	0,104	STK
0100659104	27,0	32,0	1/2"	18,0	36,0	315,0	27,0	32,0	0,106	STK
0100659105	32,0	36,0	1/2"	22,0	38,0		32,0	36,0	0,144	STK
0100659130	32,0	27,0	3/4"	15,0	38,0		32,0	27,0	0,100	STK
0100659131	32,0	36,0	3/4"	22,0	40,0		32,0	36,0	0,144	STK
0100659132	32,0	32,0	3/4"	18,0	38,0		32,0	32,0	0,120	STK
0100659133	41,0	41,0	3/4"	28,0	41,0	630,0	41,0	41,0		STK
0100659150	41,0	36,0	1"	22,0	43,0	630,0	41,0	36,0	0	STK
0100659151	41,0	41,0	1"	28,0	43,0		41,0	41,0	0,155	STK
0100659170	50,0	50,0	1 1/4"	35	48,0	630,0	50,0	50,0	0	STK
0100659171	-	-	0	0	0	630,0	0	0	0	STK
0100659190	-	-	0	0	0	630,0	0	0	0	STK
0100659191	55,0	60,0	1 1/2"	42,0	52,0	630,0	55,0	60,0	0	STK

Forbehold for forkert produktdata, variationer i billeder/videoer, samt pris- og valutakursændringer.
